BDFL-250 Wound Dressing Machine

Name of machine: fully automatic wound dressing manufacturing and packing line

Online Inquiry


·  Name of machine: fully automatic wound dressing manufacturing and packing line

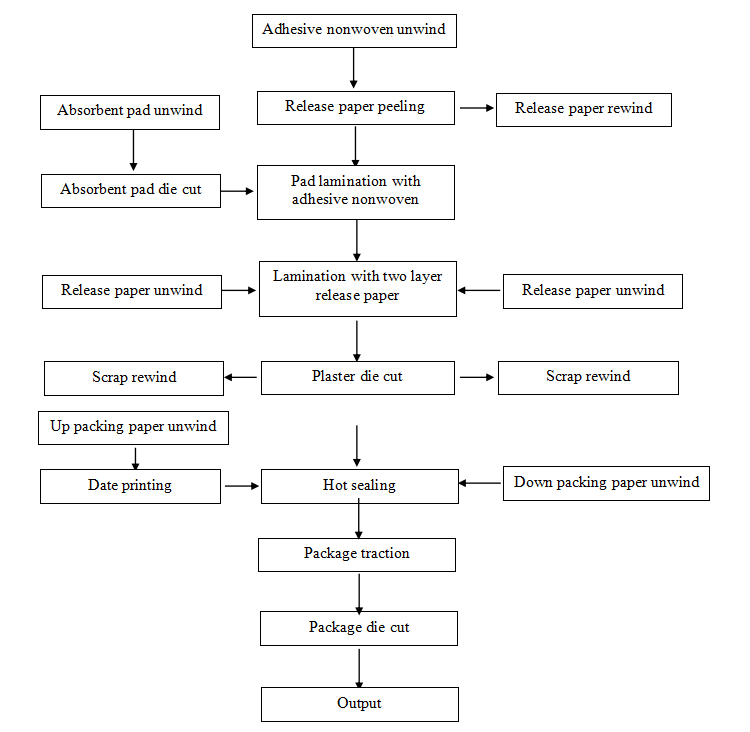

·  working principle




·  voltage: 380v, power 16kw

·  MONTION CONTROLLER control system connection with touch screen

·  production speed: 150pouches/min (for 100x100mm)

·  maximum working width of plaster: 250mm

· maximum working width of packages: 350mm

· sealing method: roller sealing

· 3 groups rewind mechanic adopts magnetic powder clutch tension control

· 5 groups unwind mechanic adopts magnetic powder braker tension control or fully automatic constant tension controller (for customer selections)

· photoelectric eye for printing art-work on up packing paper (for detect the knife to cut from correct position)

· servo motor controlling mechanic for other stations

- basic materials traction mechanic

- pad traction mechanic

-  pad cutting die mechanic

- Plaster traction mechanic

- Plaster die cutting mechanic

-  hot sealing mechanic

- packages traction mechanic

- packages cutting die mechanic

· photoelectric eye: 6pcs

machine auto stops during each raw materials shortage

· approx. size and weight: 3600x1250x2000mm, 3400kg

· machine Body: steel, packed with stainless steel and raw materials connection part adopts stainless steel, and some by chromate treatment or Aluminum.
