ForTegaderm with Windows
ManufacturingMachine
Max working width 140mm

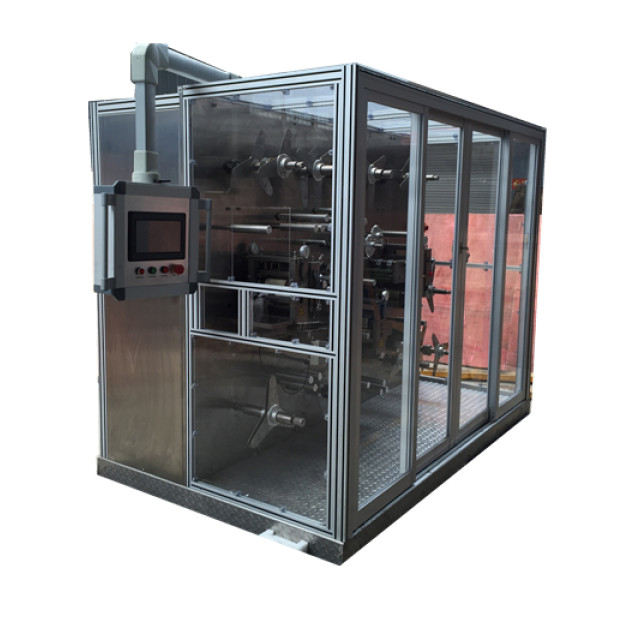

· Name of machine: fully automatic IV cannula dressing cutting machine
· working principle
· voltage: 380v, power 6.0kw
· MONTION CONTROLLER control system connection with touch screen
· production speed: 0-100pcs/min
· maximum working width: 150mm
· 3 groups rewind mechanic adopts magnetic powder clutch tension control
· Adhesive PU foil and release paper unwind mechanic adopts fully automatic constant tension control
· servo motor controlling mechanic for other stations
- adhesive PU foil kiss cut mechanic
- adhesive PU peeling traction mechanic
- Plaster traction mechanic
- Plaster die cutting mechanic
· photoelectric eye: 3pcs
machine auto stops during each raw materials shortage
· approx. size and weight: 2800x1080x2000mm, 1500kg
· machine Body: steel, packed with stainless steel and raw materials connection part adopts stainless steel, and some by chromate treatment or Aluminum.
