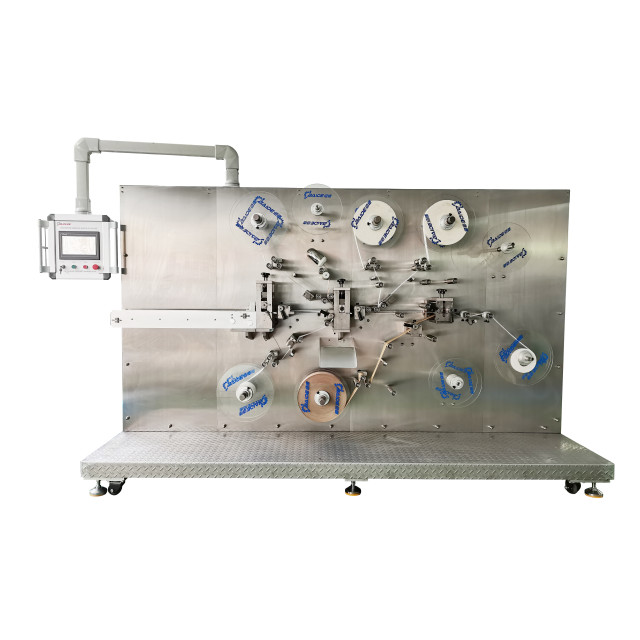

BDCK-90 Adhesive Band Aid Machine

· Name of machine: high speed adhesive band aid production  line

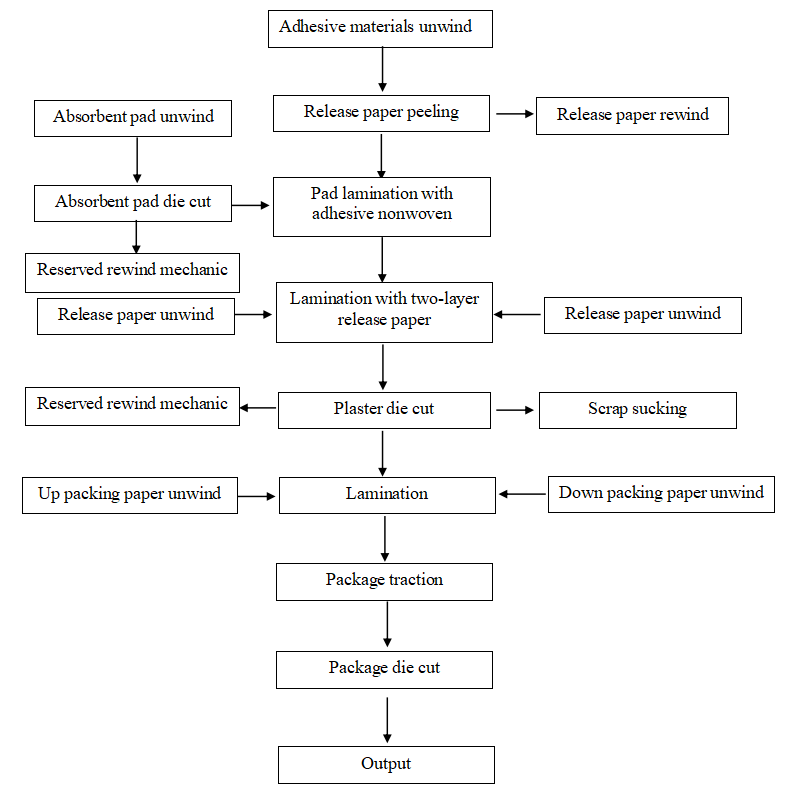

· working principle

· voltage: 380v, power 6.0kw

· MONTION CONTROLLER control system connection with touch screen

· production speed: 1000pouches/min (19x72mm)

· maximum working width of plaster: 90mm

· maximum working width of packages: 110mm

· 3 groups rewind mechanic adopts magnetic powder clutch tension control

· 5 groups unwind mechanic adopts automatic constant tension controlling

- basic materials unwind

- two release paper unwind

- two packing materials unwind

· servo motor controlling mechanic for other stations

- basic materials traction mechanic

-  pad cutting die mechanic

- Plaster traction mechanic

- Plaster die cutting mechanic

- packages traction mechanic

- packages cutting die mechanic

· photoelectric eye: 6pcs

machine auto stops during each raw materials shortage

· approx. size and weight: 3500x1050x2000mm, 1800kg

· machine Body: steel, packed with stainless steel and raw materials connection part adopts stainless steel, and some by chromate treatment or Aluminum.
