Coating & Cutting Machine

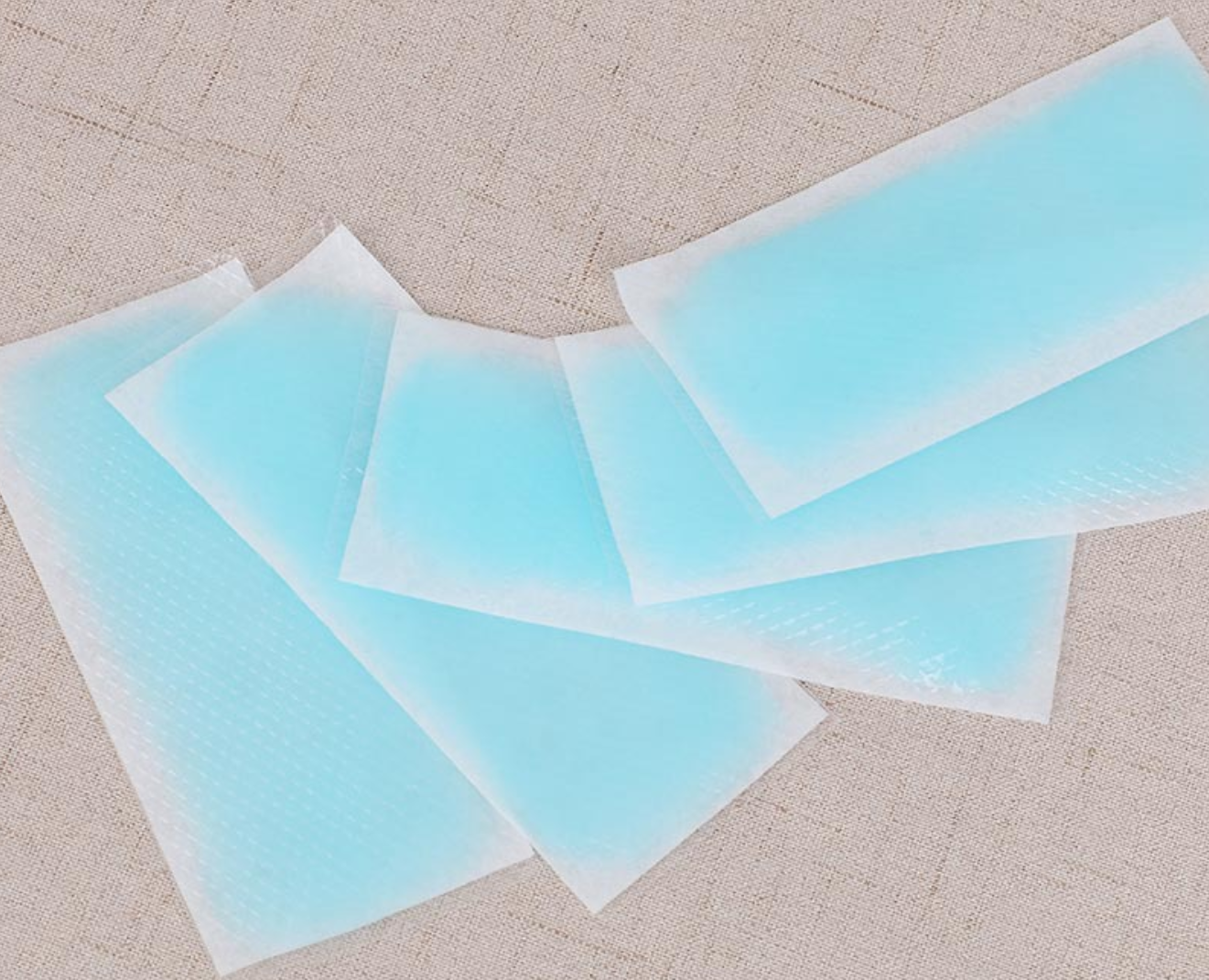

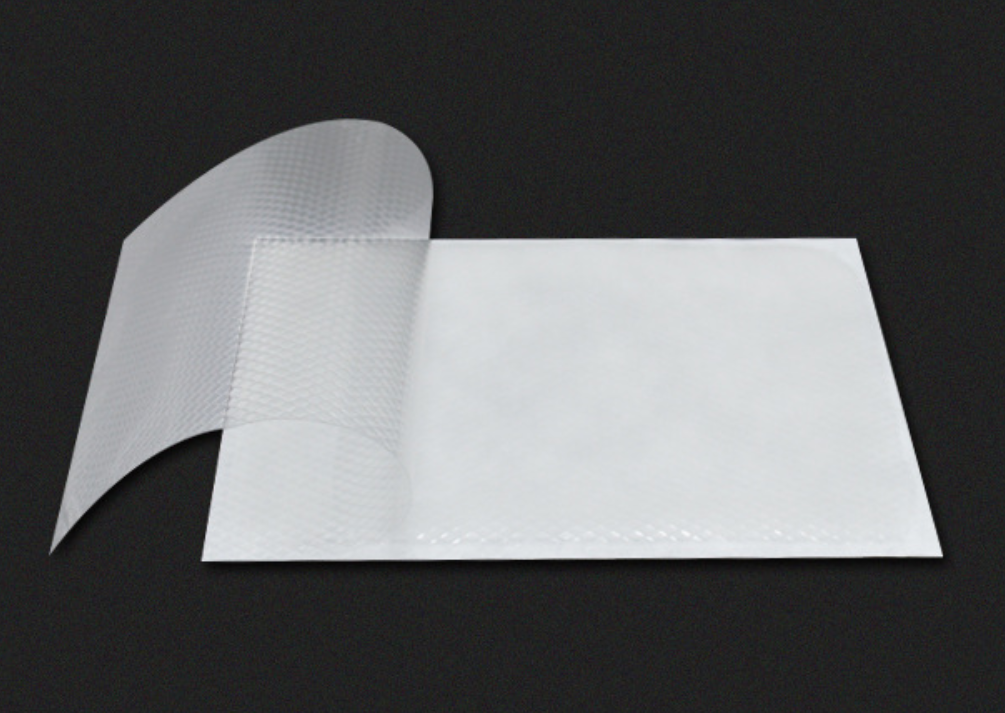

For Cooling Gel Patch, Pain Release Patch, Hydrogel Facial Masks

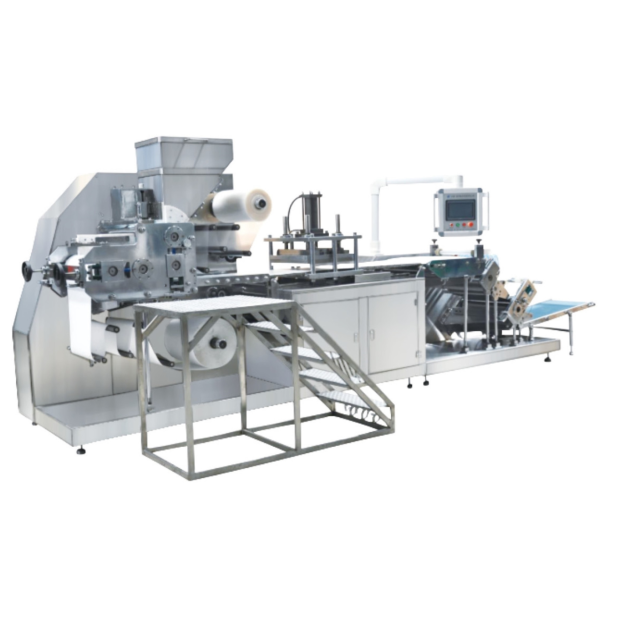

· Name of machine: hydrogel coating line
· This machine can manufacture cooling gel patch, cataplasm patch, abnormal plasters
· Normal PLC replaced by advanced motion controller system
· Photoelectric tracking, automatic raw materials feeding and machine auto stop without materials
· Coating method: double coating (transfer coating and double roller coating)
· Adopts mold pressing mechanic, more beauty of finished products
· Products size according to buyer
· Coating thickness: 0.5mm – 4mm
· Effective coating width: 450mm
· Working speed: 0-450pcs/min, based on 50x120mm
· Total power: 9.0kw
· Machine size: 5300x1350x2150mm
· Machine weight: 3600kg
