Online Cartooning Line
For Adhesive Band Aid, Wound Dressing, All Kinds of Medical Plasters
CARTOONING MACHINE for adhesive band aid/wound dressing
|
No. |
Item |
Parameter |
Notes |
|
1. |
Box packing speed/production capacity |
40-75 boxes/min |
|
|
2. |
Machine Dimension |
3300×1380×1600 |
L×W×H |
|
3. |
|

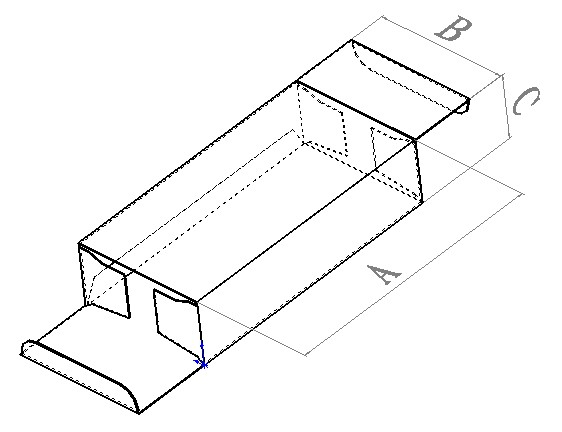

Minimum 80×35×35mm
|
A×B×C
|
|
|
Dimension scope of carton |
Maximum 180×80×80mm |
A×B×C |
|
4. |
Pressure of compressed air/gas consumption |
≥0.6Mpa/≤0.3m3/min |
|
|
5. |
Power supply/total power |
0.75KW |
|
|
6. |
Main motor power |
0.75KW |
|
|
7. |
Machine weight |
Approx. 1200Kg |
|
· The machine can be designed and manufactured according to the space of current GMP standard workshop.
· The whole functional area has partition design, imported photoelectric eye tracking is used, it can detect and automatically control mechanical operation.
· Automatic box entery and sealing can be achieved when products are automatically loaded into plastic tray.
· Station action of the machine has high electronic automatic synchronization, so that the operation of the machine can be more coordinated and more balanced with low noise.
· There is simple operation for the cartooning machine, there is PLC programmable control and touch-type man-machine interface.
· PLC automation control system output interface of the machine can realize the real-time monitoring of the latter part of the packaging equipment.
· It has high degree of automation, it has large scope of control with high control accuracy, there is sensitive control response and good stability.
· There is few spare parts, the machine has simple structure, it is easy to conduct maintenance.
· Machine is designed with low decibel (Noise of working equipment≤75db )
· Bottom foot uses threaded bottom plate; height can be adjusted
|
Name |
Qty. (pcs) |
Model |
Notes |
Place of origin and brand |
|
Man-machine interface |
1 |
GT1050-QBBD-C |
|
Mitsubishi |
|
PLC |
1 |
FX3G-60M |
Programmable controller |
|
|
Frequency converter |
1 |
FR-D720S-1.5K-CHT |
1.5 |
|
|
Contactor |
|
LC1-D1810 |
|
Schneider |
|
Circuit breaker
|
2 |
1C3 |
|
|
|
2 |
2C10 |
|
||
|
1 |
3C16 |
|
||
|
Photoelectric switch |
1 |
E3V-DS8 |
|
OMRON |
|
Relay |
2 |
MY4 |
|
|
|
4 |
G6B-4BD |
|
||
|
Power supply of switch |
1 |
S8X-5024 |
|
|
|
Relay group |
|
|
|
|
|
Solenoid valve |
2 |
4V210-08 |
|
AirTAC |
|
Pressure |
|
|
|
|
|
regulating valve |
1 |
BFR-2000 |
Duplex pieces |
|
|
Vacuum generator |
|
|
|
Korea ICON |
|
Main gear motor |
1 |
CH-28-750-10-S |
380V |
Dongbang |
|
Bearing |
|
All kinds of specifications |
|
Harbin |
|
Wear-resisting parts |
|
GCr15 |
|
Shanghai Baosteel |
|
Stainless steel cover |
|
SUS304 |
|
Korean Pohang |
|
Transformer |
|
|
|
Made in China |
