For solid and liquid ECG electrodes
Any shapes are freely to change
MACHINE SPECIFICATIONS

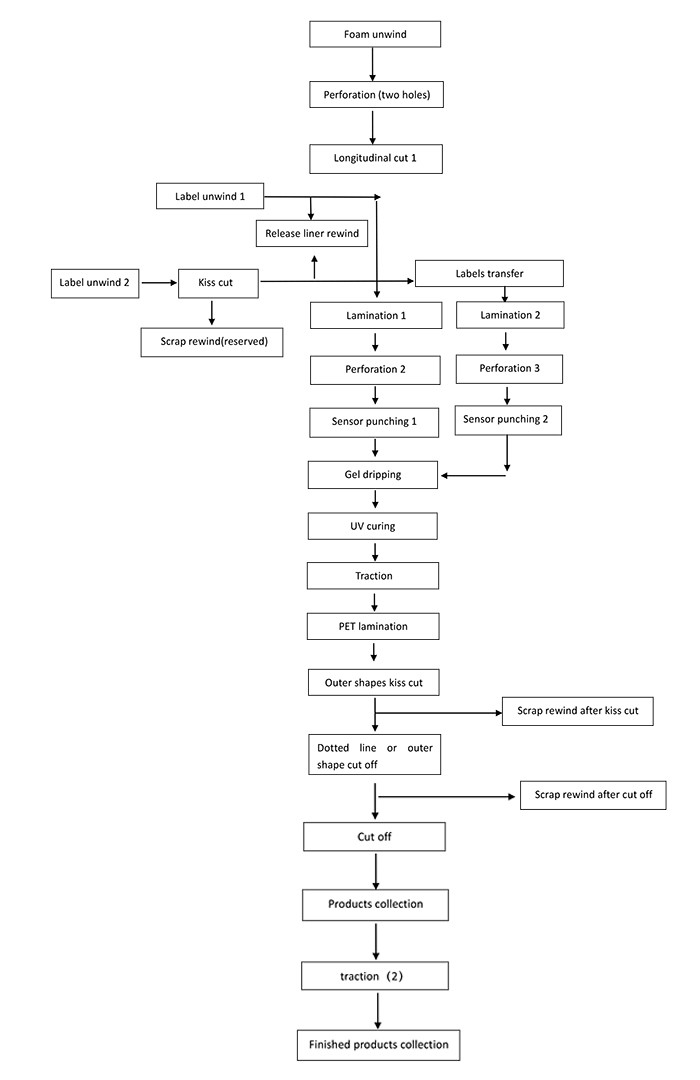

· Working principle
· Maximum raw materials width: 130-140mm
· Maximum unwind diameter: 400mm
· Scrap rewind diameter: 400mm
· Production speed: maximum 80-90pcs/min
· Cutting precision: ±0.2mm
· Maximum product cutting size: 70mmx130mm
· Rewind and unwind core: 76mm
· Total power: 8.5Kw
· Machine weight: 1500Kg
